Stop using liquid coolants! Now time to go for Exair Cold Gun Aircoolant system

 If you're considering switching from liquid coolant to an air-based solution like the Exair Cold Gun, here are some benefits :

Benefits of Using Exair Cold Gun Over Liquid Coolant:

1. Cleaner Operation: No liquid mess or the need for coolant disposal, which can simplify maintenance and reduce environmental impact.
2. Reduced Costs: Eliminates the ongoing costs associated with purchasing, maintaining, and disposing of liquid coolants.
3. Non-Contaminating: Since no liquids are involved, there's no risk of coolant contamination or residues on parts.
4. Consistent Cooling: Provides a steady, reliable stream of cold air, reducing the risk of overheating during machining.
5. Environmentally Friendly: Uses only compressed air, avoiding the environmental concerns related to chemical coolants.
6. Improved Safety: Eliminates the hazards associated with handling and exposure to chemical coolants.

The Exair Cold Gun is a tool used in industrial applications to provide a stream of cold air for cooling purposes. It operates using a compressed air supply, without any moving parts or refrigerants, making it a maintenance-free solution. The cold air produced by the Cold Gun is typically used to cool machining operations, prevent heat buildup in sensitive processes, or provide spot cooling for parts or equipment.

Key Features:

• Compressed Air Powered: The Cold Gun uses compressed air to generate cold air, which makes it efficient and environmentally friendly since it doesn't rely on electricity or refrigerants.

• No Moving Parts: The lack of moving parts means there is minimal wear and tear, resulting in lower maintenance costs and longer operational life.

• Temperature Drop: The tool can lower the temperature of the air by as much as 50°F (28°C) from the ambient temperature.

• Versatile Applications: It's commonly used in CNC machining, metal cutting, and other processes where excessive heat could damage tools or parts.

• Quiet Operation: The Exair Cold Gun is designed to operate quietly, making it suitable for environments where noise reduction is important.

Would you like more detailed information or have specific questions about its operation or applications?

Please Click Here to visit our website.

Vivek Engineers #22, 1st Floor, 1st Cross,  Bilekahalli Indl. Area, Adj. IIMB Compound,  Bannerghatta Road, Bangalore - 560 076  Ph : 080 -  4170 1145 Email: sales@vivekengineers.net            p.lochan@vivekengineers.net

How Exair Air Nozzles Save Money and Compressed Air ?

Industrial air nozzles are widely used in India across various industries for applications such as cooling, drying, blowing off debris, and cleaning. But it is really complicated to find out a proper nozzle based on quality and cost.

Now I am going to explain you how you can save Money and Compressed Air if you select EXAIR Engineered Air Nozzles in India.

One of the worst culprits for inefficient air use is open pipe blow-offs. This would include cheap air guns, drilled holes in pipes, and tubes. These are very inefficient for compressed air and can cost you a lot of money.  I will share a comparison to a 1/8” NPT pipe to an EXAIR Mini Super Air Nozzle.  (Reference below).  As you can see, by just adding the EXAIR nozzle to the end of the pipe, the company was able to save per year.  That is some real savings.

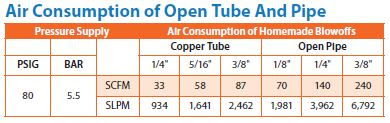

The table above shows the air consumption for typical homemade blow offs. The pages that follow give the air consumption and other data on EXAIR's Air Nozzles and Jets. Consider the following example where a Model 1102 Mini Super Air Nozzle replaces an 1/8" open pipe. The compressed air savings is easy to calculate and proves to be dramatic. Payout for Air Nozzles and Jets, including filter and installation cost is measured in weeks - not years, as is the case for other cost reduction equipment. Based on a 40 hour work week, 52 weeks a year.

Example:

1. Existing blowoff is 1/8" open pipe at 80 PSIG (5.5 BAR) supply.

Air consumption, from the table above, is 70 SCFM (1,981 SLPM).

2. Use a 1/8 FNPT Model 1102 Mini Super Air Nozzle also at 80 PSIG (5.5 BAR) supply. Air consumption, from the image below, is 10 SCFM (283 SLPM).

3. Compressed air saved = 70 - 10 = 60 SCFM (1,981 - 283 =1,698 SLPM)

4. For this example, the blow off is continuous. If the duty cycle was 20%, then air saved would be 60 x .2 = 12 SCFM (1,698 x .2 = 340 SLPM).

 5. Most large plants know their cost per 1,000 standard cubic feet of compressed air (10,000 standard liters). If you don't know your actual cost per 1,000 SCF, Rs 29 is a reasonable average to use.

(Cost per 10,000 standard liters is approximately Rs 10 )

 6. Money saved per hour = SCFM saved x 60 minutes x cost/1,000 SCF

                                            (SLPM saved x 60 min x cost/10,000 SL)

                                          = 60 x 60 x Rs 29 /1,000

                                         (= 1,698 x 60 x Rs 10 /10,000)

                                             =Rs 104/hour that is =Rs 4160/week and Rs 216,320/year savings for one nozzle.

Now please Let me answer and explain  to a very common question, we are asked during presentation of Exair's Air Nozzles that Why Exair Air nozzles consume less compressed air.

Well, we will discuss the working principle of Exair Air Nozzles and which is of course the realistic answer.

Air Nozzles use the Coanda effect to amplify compressed airflow up to 25 times or more. As illustrated on top, compressed air (black arrows) is ejected through a series of nozzles on the outer perimeter. As the air travels along the outer wall of the nozzle, surrounding air (blue arrows) is entrained into the stream. The airstream that results is a high volume, high velocity blast of air at minimal consumption. The air is always ejected so it can vent safely, well below OSHA dead end pressure requirements, should the nozzle end be blocked.

For more detailed information or to select the appropriate model for your specific needs, you can visit  official website of Vivek Engineers or contact the Application Engineers.

website www.vivekengineers.net
